Barudan Commercial Embroidery Machines: Technical Guide for Production Optimization

1. Introduction to Barudan Commercial Embroidery Systems

Barudan has established itself as a formidable player in the commercial embroidery machine market, renowned for its innovation, reliability, and performance. As businesses strive for efficiency and precision, Barudan commercial embroidery machine offerings cater to a wide range of production needs, from small-scale operations to industrial giants. This guide delves into the technical specifications, model comparisons, and best practices for optimizing production with Barudan machines. Whether you're evaluating the K-Series for its high-speed capabilities or the Pro3 for intricate designs, understanding these machines' nuances will empower you to make informed investment decisions and maximize your embroidery output.

2. Technical Specifications Breakdown

2.1 Multi-Head Configurations & Sewing Speeds

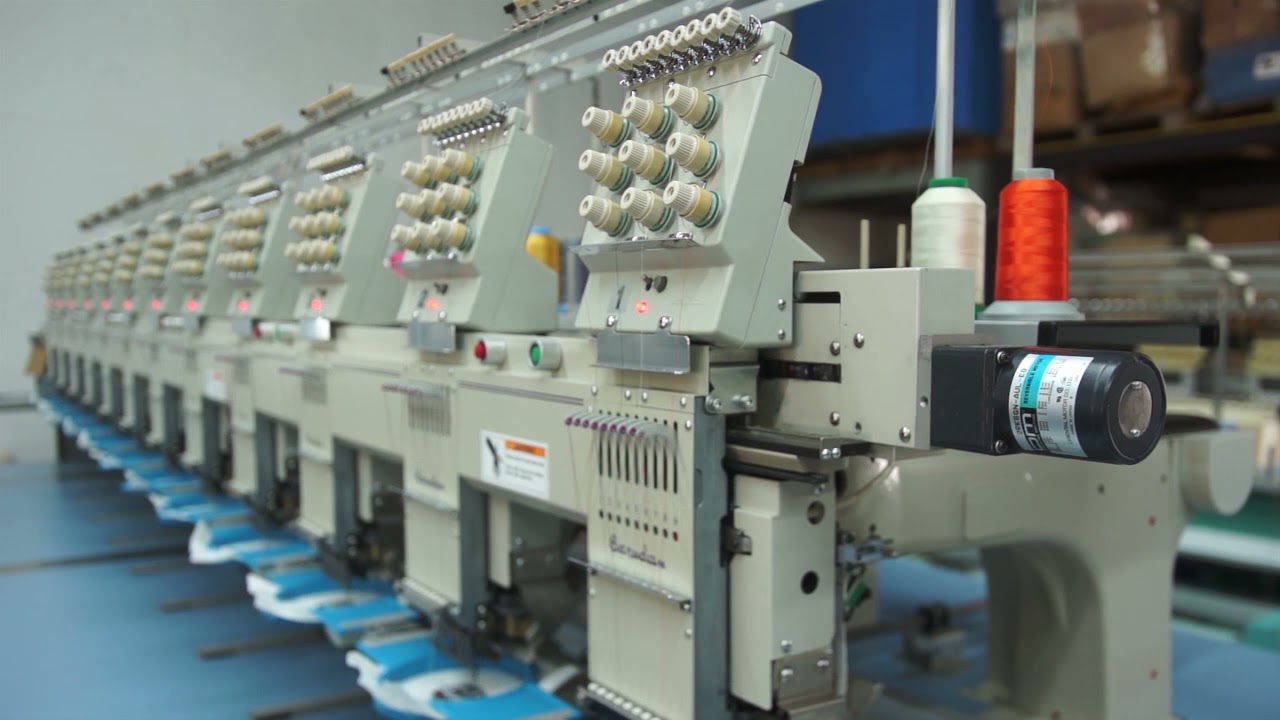

Barudan's multi-head configurations offer versatility and scalability, accommodating diverse production requirements. The Barudan multi head embroidery machine K-Series, with its 2 to 8 head models, provides a sewing field of 450 × 520 mm, achieving speeds of up to 1,100 stitches per minute (SPM) for flat goods and 1,000 SPM for caps. In contrast, the BEKS-S1515C stands out with a speed of 1,200 SPM, optimized for larger-scale production. This model supports a sewing field of 450 × 380 mm, making it ideal for high-volume operations. These configurations allow businesses to tailor their machine setup to their specific production needs, ensuring efficiency and quality.

2.2 SmartHead Technology & Frame Compatibility

The introduction of SmartHead technology in Barudan's K-Series marks a leap in embroidery precision and speed. Equipped with servo motors, these machines offer enhanced control and faster operation, crucial for maintaining productivity in demanding environments. The bridge-type head configuration maximizes the sewing field while ensuring stability, allowing for precise embroidery on a variety of materials, from delicate silks to robust leathers. Additionally, Barudan machines are compatible with Sewtalent magnetic hoops, which are particularly beneficial for garment embroidery. These hoops simplify the hooping process, reducing changeover time and enhancing fabric stability during stitching.

3. Model Comparison: K-Series vs Pro3

3.1 Bridge vs Arm-Type Chassis Applications

Choosing between a bridge or arm-type chassis depends on your production focus. The bridge-type chassis, exemplified by models like the BEDSH-Z12, offers a fixed tabletop and servo-driven precision, ideal for flat goods such as jackets and tote bags. However, it may not be as adaptable for curved or irregularly shaped items. On the other hand, the arm-type chassis, like the BEHJ-UF-12, features a cylinder arm design that accommodates caps, sleeves, and 3D foam, providing greater flexibility for complex items. This versatility makes it a preferred choice for businesses with diverse product lines.

3.2 Throughput Analysis: 2-8 vs 12-56 Head Setups

For businesses evaluating throughput, the choice between 2-8 head and 12-56 head setups is crucial. Smaller setups offer flexibility and are well-suited for custom orders and varied designs, while larger setups maximize throughput for standardized products. Utilizing Sewtalent magnetic hoops can significantly reduce changeover time by 23%, enhancing production efficiency. By aligning machine specifications with production scale and design complexity, businesses can optimize their operations, ensuring high-quality output and improved return on investment.

4. Commercial Investment Evaluation

Investing in Barudan commercial embroidery machines requires a thorough evaluation of pricing, warranty options, and return on investment (ROI). Understanding these factors can significantly impact your decision-making process and long-term profitability.

4.1 Pricing & 5-3-2 Warranty Analysis

When considering Barudan machines, pricing varies significantly between new and used models. New Barudan embroidery machine cost for six-head models starts at approximately $60,000, with larger configurations like the 15-head models exceeding this range. Used machines, on the other hand, can be found at a fraction of the cost, though prices depend on age, condition, and included features. For instance, models from 2003 to 2011 may include accessories such as tubular frames and training.

Barudan's 5-3-2 warranty is a crucial consideration for new machines, offering five years on the main motor, three years on electronic parts, and two years on all remaining parts, excluding consumables. This extended coverage provides peace of mind, ensuring that your investment is protected against unforeseen issues.

4.2 ROI Calculation Framework

To assess the ROI of a Barudan embroidery machine, it's essential to consider key performance indicators and revenue projections. For example, a 15-head machine operating at 1,000 stitches per minute can produce approximately 90 designs per hour, assuming a 10,000-stitch design. With an average price of $5 per design and an 8-hour workday, this translates to an annual revenue of $900,000.

Cost considerations include the initial machine cost, which for a new 15-head model is around $100,000, as well as ongoing expenses like thread, maintenance, labor, and electricity. High-volume operations could achieve a break-even point within one to two years, depending on the margin per design. Leveraging Barudan's advanced connectivity options, such as LAN and USB interfaces, can further enhance production efficiency and scalability.

5. Operational Maintenance Guide

Proper Barudan embroidery machine repair and maintenance is essential for maximizing the lifespan and performance of Barudan embroidery machines. This guide provides insights into lubrication systems and thread management, ensuring your equipment operates smoothly and efficiently.

5.1 Lubrication Systems & Thread Management

Barudan machines require specific lubrication protocols to maintain peak performance. Key components and their lubrication requirements include:

1. Lubricant Types and Applications

- Machine Oil (KF720110): Apply to the hook raceway every 4–6 hours of operation. This oil is included with new machines or can be substituted with high-quality sewing machine oil.
- Bearing Oil (HB720110): Use this specialized oil for needle crank bearings and take-up driving levers, available exclusively from Barudan.
- White Lithium Spray Grease: Apply to cloth holder CAMs and take-up lever CAMs every six months.

2. Critical Lubrication Points

3. Safety and Best Practices

- Use only Barudan-recommended lubricants to prevent contamination or damage.
- Clean excess oil from parts to avoid lint buildup.
- Lubricate wheel bearings sparingly, as pre-applied grease typically suffices.

Proper thread tension adjustment is equally vital. Regularly test tension using the BEVT-S1501CAII maintenance manual protocols, ensuring consistent stitch quality and machine efficiency.

6. Cap Frame Optimization Strategies

Optimizing cap embroidery with Barudan machines involves understanding the Advantage EX Cap Frame system, which facilitates seamless transitions between flat and cap embroidery.

6.1 Advantage EX System Configuration

The Advantage EX Cap Frame system allows tool-free conversion between flat and cap embroidery, enhancing production flexibility. Key features include:

• Direct Pantograph Attachment: Eliminates pivot bars, enabling quick transitions via two levers.
• Self-Aligning Design: Automatically aligns with the machine, reducing setup time and minimizing design distortion.
• Compatibility: Works with Barudan K-Series, C-Series, D-Series, and V-Series machines.

To switch from flat to cap embroidery, remove the flat frame, attach the EX Cap Frame to the pantograph using built-in levers, and secure the cap with the included drive unit and cap frames. This system supports diverse cap sizes through Barudan cap frames for sale with adjustable height settings, accommodating caps from 15 cm to 460 mm.

By leveraging the Advantage EX system, you can reduce distortion, save time, and scale production efficiently, addressing common challenges in cap embroidery such as stabilization and design accuracy.

7. Conclusion: Maximizing Production Efficiency

In the world of commercial embroidery, efficiency is the key to success. Barudan industrial embroidery machines, with their advanced technological features and robust build, are designed to drive production efficiency to new heights. By integrating Sewtalent magnetic embroidery hoops into your workflow, you can further enhance this efficiency. These hoops streamline the hooping process, significantly reducing setup times and ensuring consistent fabric tension. This not only boosts productivity but also minimizes errors, leading to higher-quality embroidery outputs. As you consider optimizing your production processes, remember that the right combination of technology and tools, like Barudan machines paired with Sewtalent hoops, can transform your embroidery operations into a powerhouse of efficiency and precision.

8. FAQ: Barudan Machine Optimization

8.1 Q: How can I maintain optimal performance for my Barudan embroidery machine?

A: Regular maintenance is crucial for keeping your Barudan machine in peak condition. This includes following the recommended lubrication schedule, using Barudan-specific oils and greases, and ensuring proper thread tension. Additionally, routine checks on the MK8 trimmer and other critical components will help prevent unexpected downtime and extend the machine's lifespan.

8.2 Q: What are the best strategies for scaling production with Barudan machines?

A: Scaling production with Barudan machines involves selecting the right machine configuration for your needs. Consider the size and complexity of your designs and choose between 2-8 head setups for flexibility or 12-56 head setups for maximum throughput. Utilizing Sewtalent magnetic hoops can further enhance efficiency by reducing changeover times and ensuring consistent embroidery quality across large production runs.
